RTMP Streaming Directshow Filter

How to Live Streaming to Facebook Live

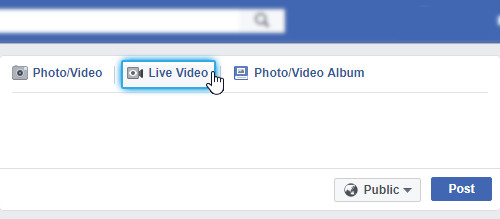

1. On your Facebook profile or page you manage, click on Live Video.



2. When the Live Video window shows up, click on Connect.

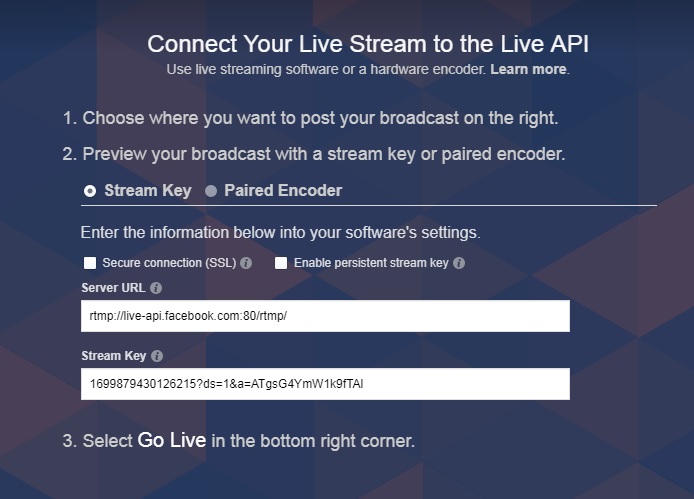

3. Now we are presented with the information we need for our VideoCap Live SDK ActiveX:

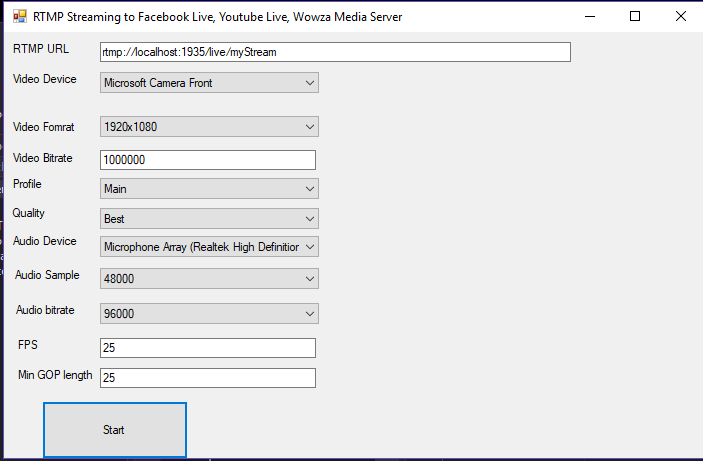

4. Run our RTMP sample, Enter the RTMP URL and Stream Name you obtained above and click Start button.
e.g.
 In Facebook, the Server URL is rtmp://live-api.facebook.com:80/rtmp,  the Stream Key is 1699879430126215?ds=1&a=ATgsG4YmW1k9fTAl ,
so the RTMP Url is rtmp://live-api.facebook.com:80/rtmp/1699879430126215?ds=1&a=ATgsG4YmW1k9fTAl

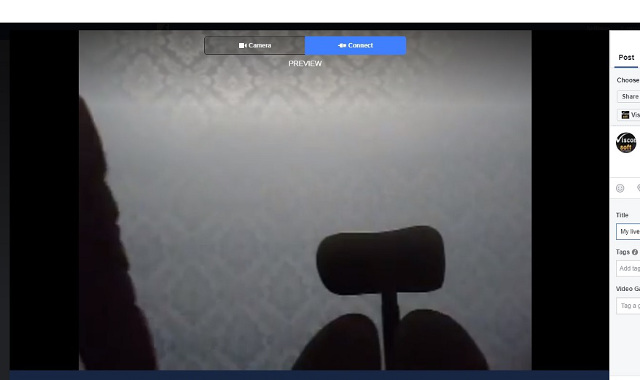

 5. Once you've started streaming on Broadcast RTMP sample, your Facebook Live window will show a PREVIEW. If Facebook Live is not receiving enough video to maintain smooth streaming, you may try decrease the videobitrate or try change the lower resolution of video format and Click Broadcast button again.

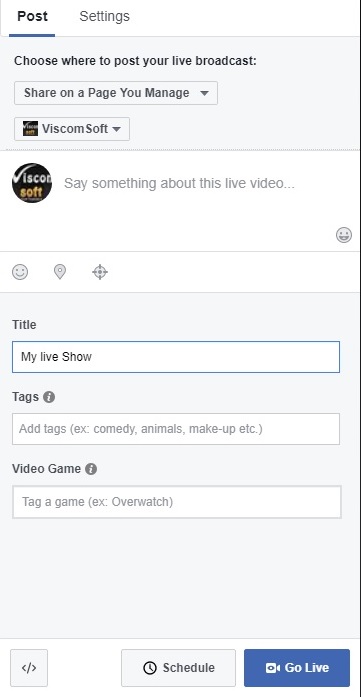

 6. Enter your post details as well as an optional Title and Video Game title, then click Go Live.
