RTMP Streaming Directshow Filter

Getting Started


1. You need RTMP Server for received the RTMP stream. You may use Wowza Media Server or Adobe Media Server. In this tutorial we will use Wowza Media Server. You may download Wowza Streaming Engine Installer from http://www.wowza.com/pricing/installer

You will need java. Download and install JDK 8 from Oracle website if you don’t have it.
Follow the on-screen instructions for installation.

2. Open Wowza engine manager in web browser by entering the URL
http://localhost:8088/enginemanager

3. Enter login information which you provided during installation.

4. Click the Applications drop down button and select live

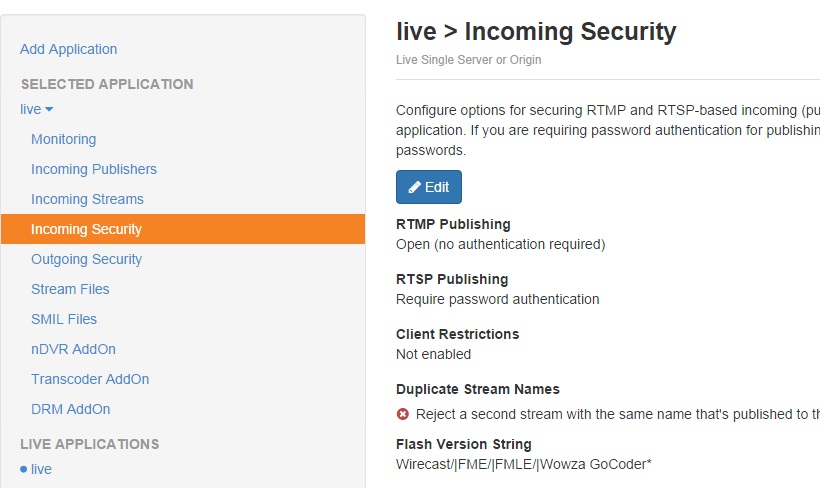

5.Select live - Incoming Security, Click Edit button

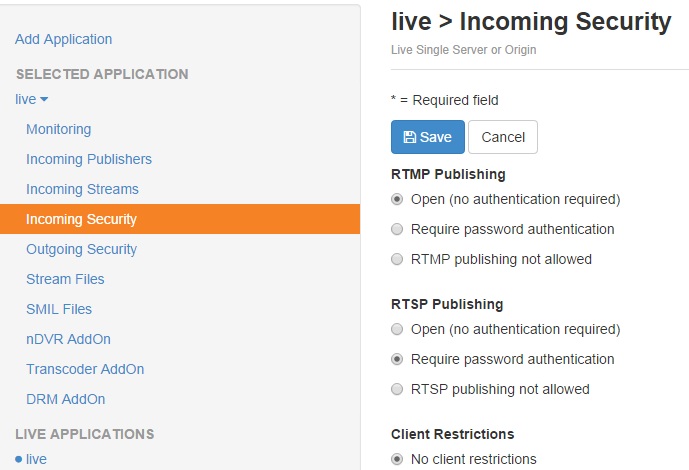

 6.In RTMP Publishing select Open (no authentication required)

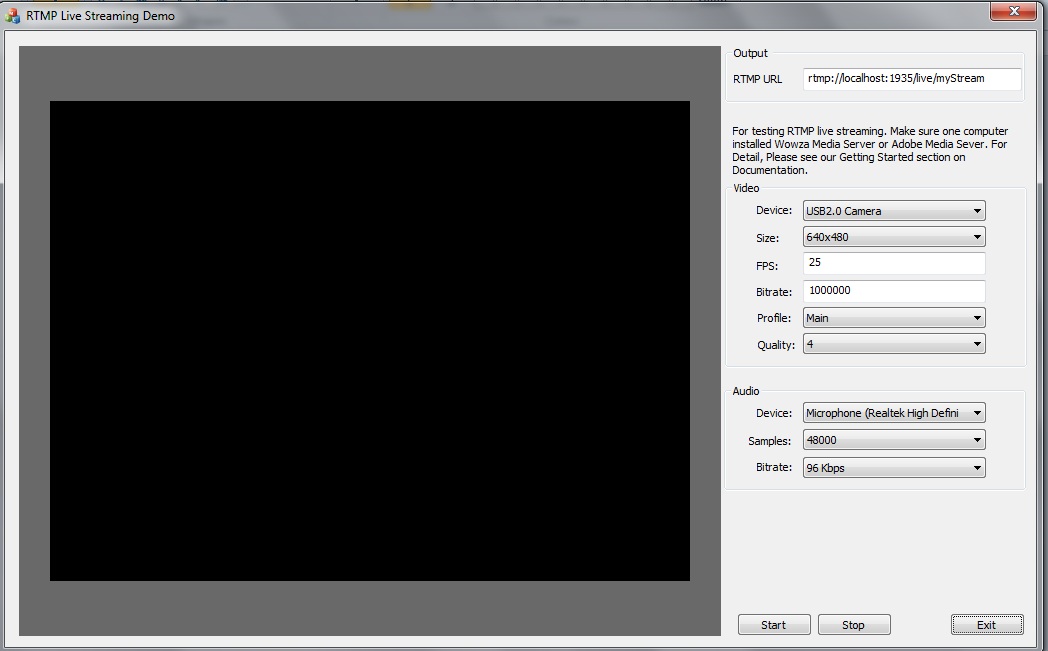

 7. Run our RTMP Live Streaming Demo, If you tested on one computer only ( Wowza Media Server computer and  RTMP Live Streaming Demo application on same computer ), you may enter localhost in RTMP URL. Otherwise you need enter correct IP address of Wowza Media Server. Click Start button.
e.g.
rtmp://[Wowza_server_IP]:1935/live/myStream

live is the application name running on Wowza server. You should keep it as it is.
MyStream is the stream name. You can put any name you want to give your stream.

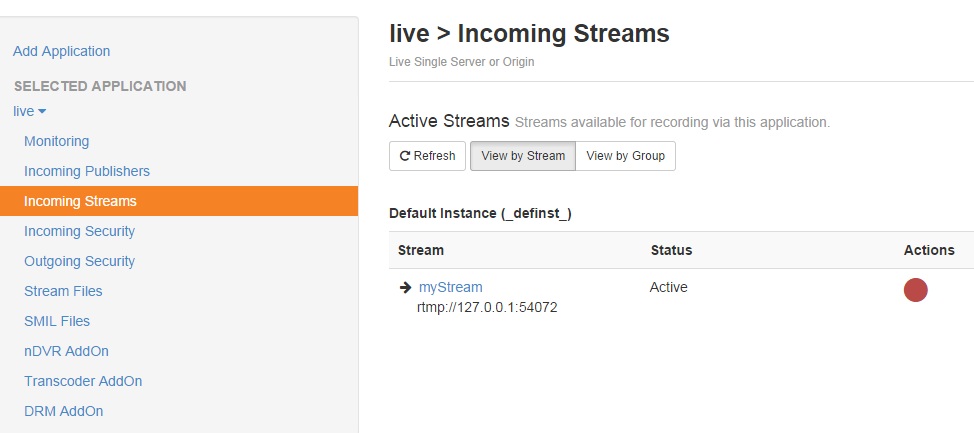

8. Select live - Incoming Streams, Click Refresh button, you should see the Stream connected. Otherwise you have firewall blocked.

8a. If you cannot see the Stream connected on Wowza Media Server computer, Select Control Panel - Windows Firewall - Advanced settings

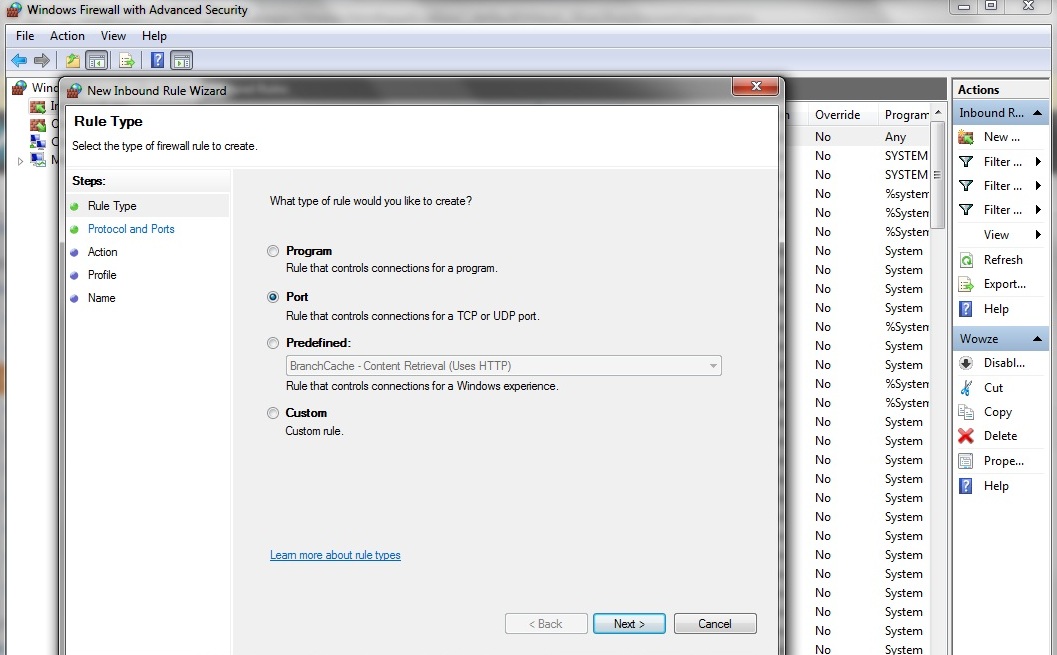

8b. Select Inbound Rules, click New Rule,  Select Port and click Next button

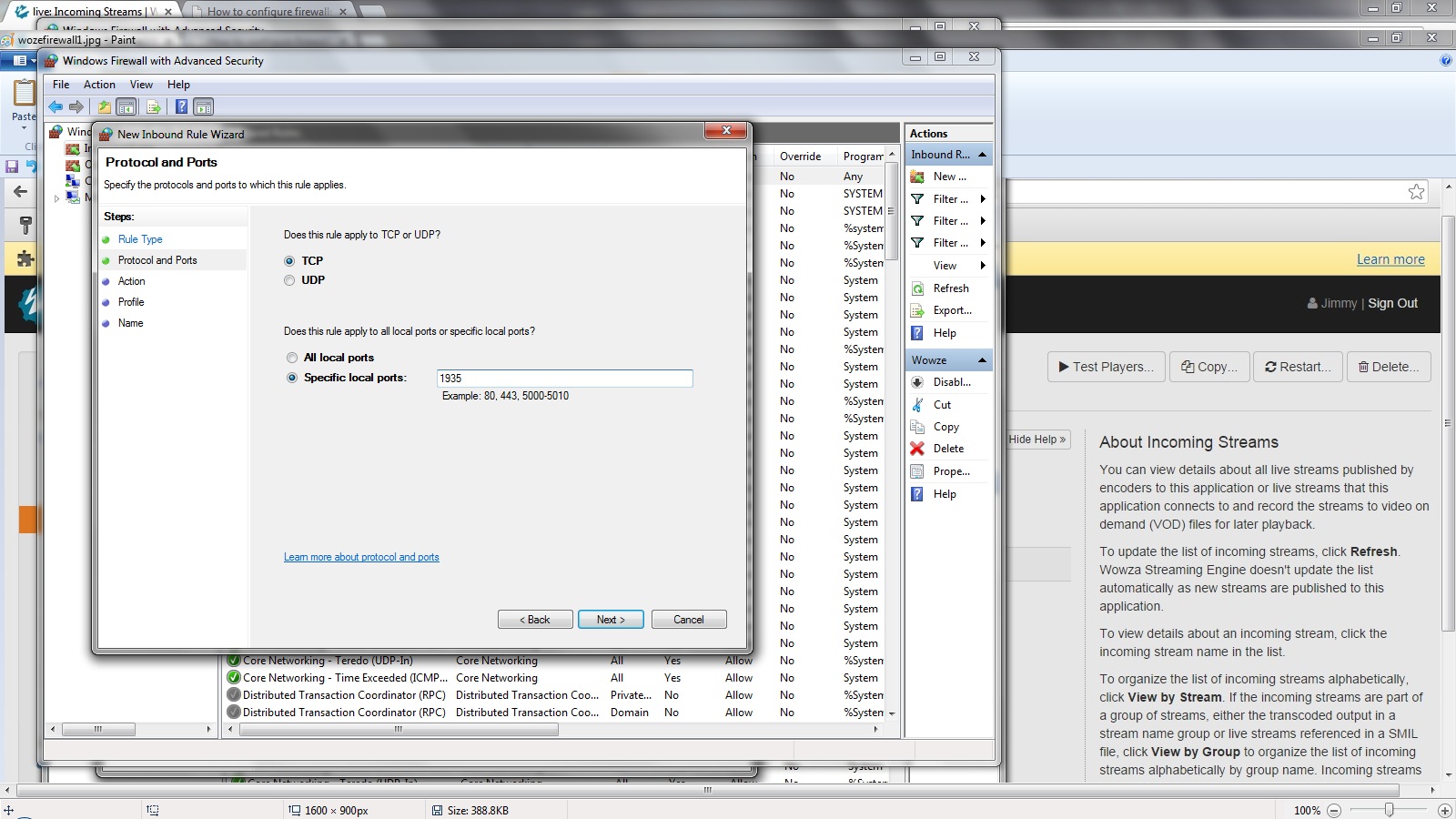

8c. select TCP and enter 1935 in Specific local ports, click Next button

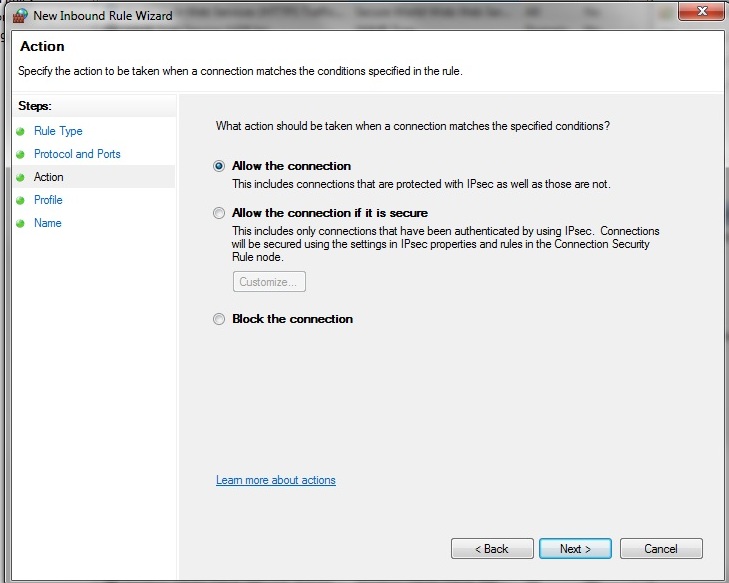

8d. Select Allow the connection and click Next button




8e. Select Domain, Private, Public checkbox and click Next button

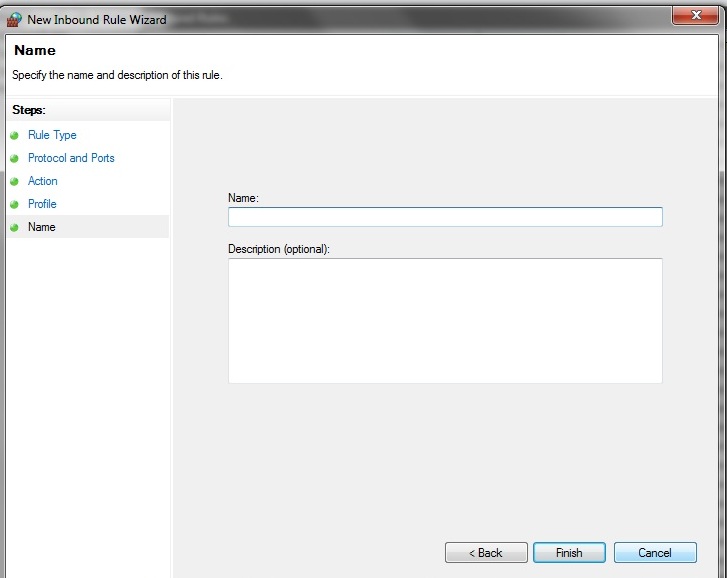

8f. Enter the name and click Finish button. You can put any name you want to give your rule.

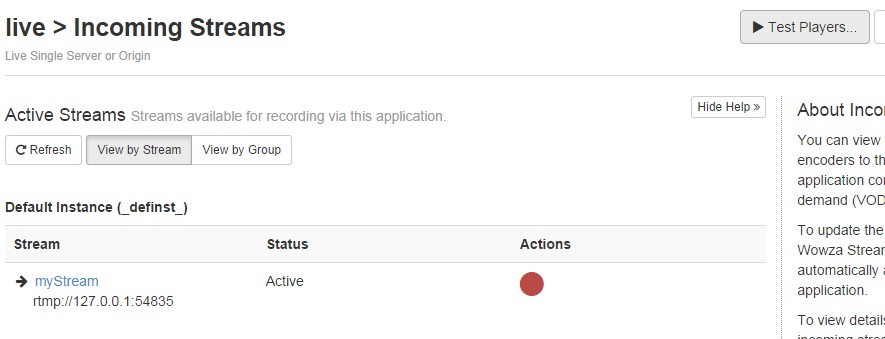

9 Select live - Incoming Streams, Click Refresh button, you should see the Stream connected.  Click Test Players button

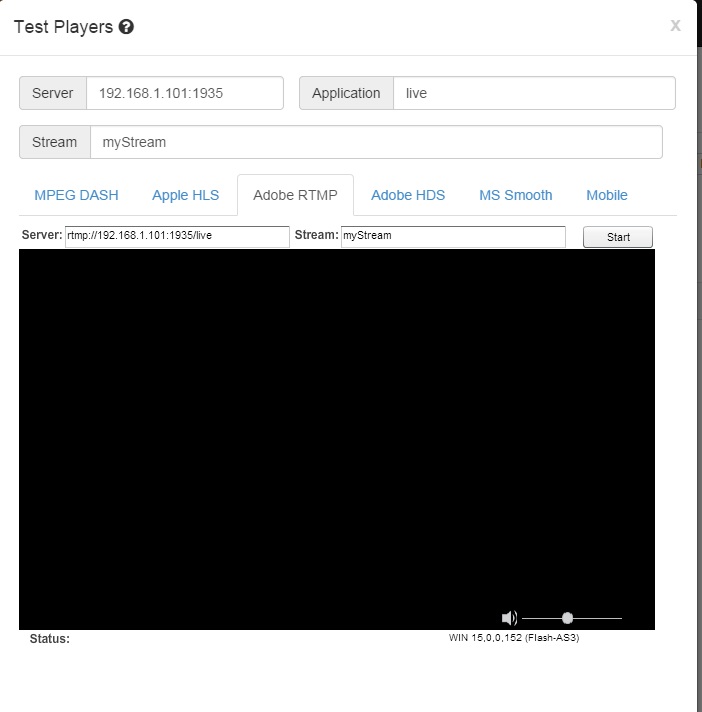

10 Select Adobe RTMP tab, click Start button, you may watch the stream now. It mean RTMP Live Streaming Demo streaming to Wowza Media Server successfully. Our  RTMP Streaming Directshow Filter support pause and resume when live streaming, you may click Pause and Resume button in our  RTMP Live Streaming Demo application.
